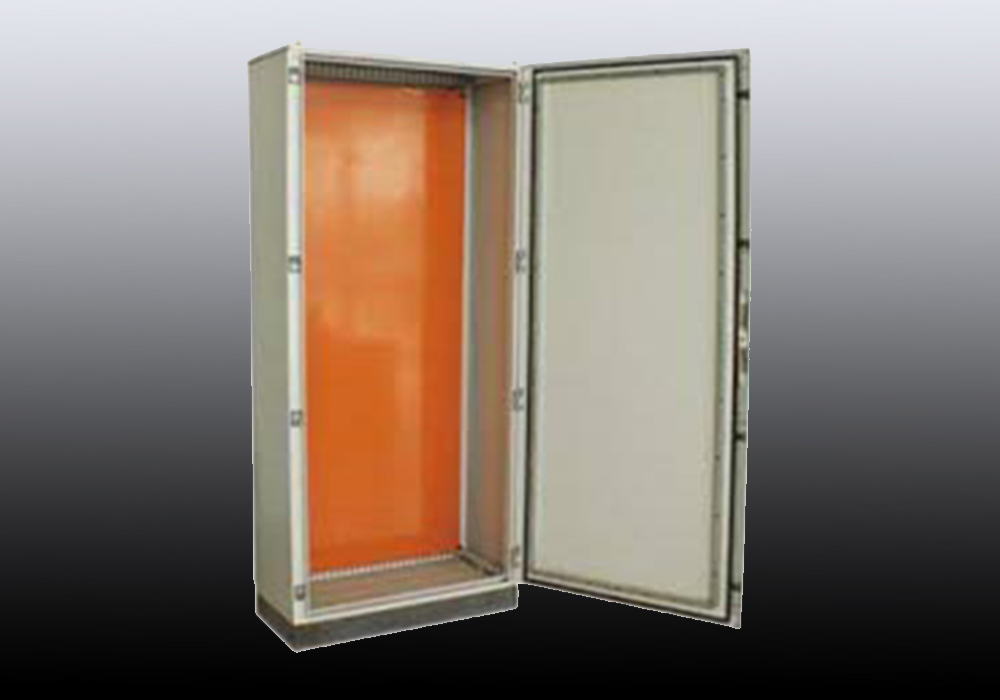

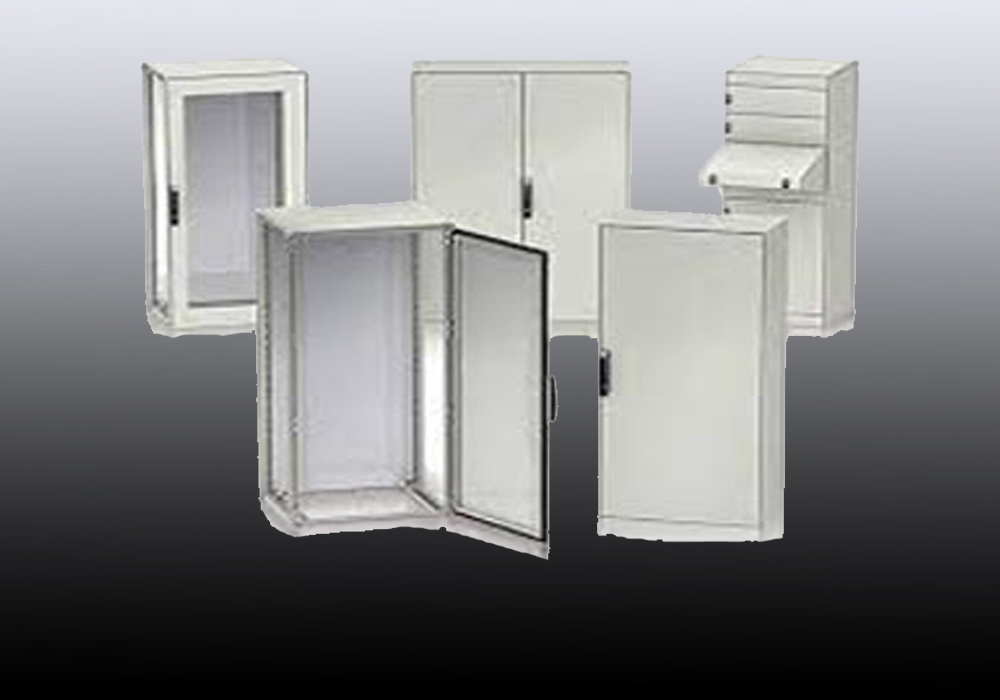

Floor Mounting Electrical Enclosures

Features

• Strongest design available in enclosure
• Perfect ratio of strength to weight
• Up to IP-55
• Multi colors powder coating is available

Sub-Assembly Structure

• Fabricated using CRCA draw quality sheet steel.
• Frame Structure: 3 mm thick folded sheet vertical and horizontal with indexing hole of dia 9 mm & 4.2 dia pitch 12.5 mm
• Body & Door: 2mm thickness and 2mm thickness beyond mounting plate & gland plate: 3 mm thickness.
• By using sub assembly part is C-plate, inter panel separator,19” rack
• Customized Solutions
• Ability to meet special requirements like non standards sizes, colors, door configuration, locking arrangements.
• Lifting eye bolts:- hooks are used in normal weight & heavy duty use angle for big enclosure.

Standard Size
